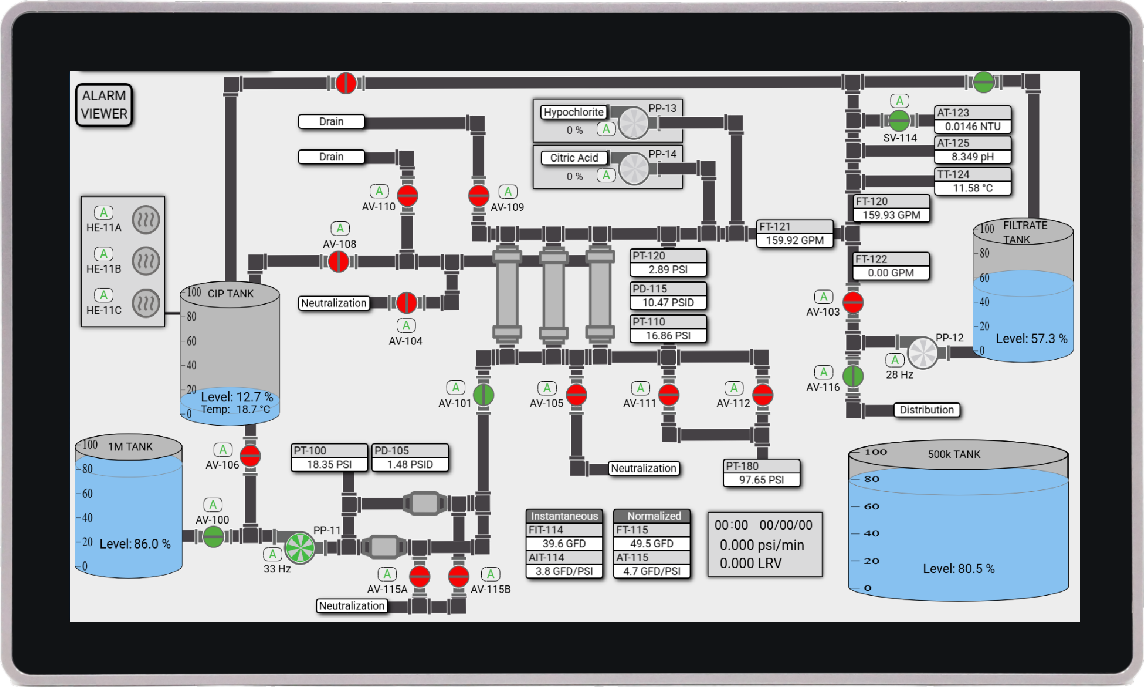

SimpliLink LocalHMI Monitor 15.6”






Datasheet & User Guide

Rev. 07/30/2026


The SimpliLink LocalHMI Monitor is a rugged 15.6-inch HDMI touchscreen designed for use with the SimpliLink Hub, providing a reliable local interface for monitoring and controlling your system. Its capacitive multi-touch display delivers responsive operation, while the IP65-rated front panel resists dust and water, making it well suited for demanding industrial environments.


Built for continuous operation, the SimpliLink LocalHMI Monitor supports standard VESA 75 × 75 mm mounting or flush panel installation for flexible deployment. Its durable construction and industrial-grade components provide a dependable HMI solution for manufacturing, water and wastewater, utilities, and other harsh operating environments.


Key Features

  • 15.6” TFT Touchscreen – 1920x1080 resolution, multi-point capacitive.

  • Aluminum Alloy Frame with Tempered Glass Screen – Vibration and impact resistant.

  • IP65 Front Panel Rating – Dust and waterproof screen.

  • HDMI Port – Direct connection to the SimpliLink hub using a standard HDMI cable.

  • USB-C Port – Touchscreen support connection. (Requires USB-A to USB-C cable to connect to the SimpliLink Hub.)

  • Wide Voltage Supply (12~24VDC) – Compatible with various industrial power systems. Max 18W power consumption.

  • 170 Degree Wide Angle Technology – Extremely wide viewing range, making the display viewable from off-angle.

  • Wide Operating Temperature – -25ºC to 50ºC

  • Embedded Installation – VESA standard 75mm x 75mm, Custom panel flush mount.


Specifications

LCD Touchscreen

Type

15.6” Capacitive Touch Screen

Multi-Touch

Yes

Communication Method

USB & HDMI

Contrast Ratio

1500:1

Viewing Angle

85°

Response Time

25 ms


Panel I/O

Power

1 x DC IN, 5.5 x 2.5 mm Barrel Connector.

Supports 12~24 Vdc input.

USB

1 x USB touch screen interface (Type-C USB) for connecting to USB interface and transmitting touch screen signals.

Audio

1 x 3.5mm audio jack, stereo audio output (N/A, future use).

HDMI

1 x HDMI port for Local HMI connectivity.


Buttons and Indicators

PWR LED

1 x Red power indicator, used to check the status of device power-on.

Brightness Adjustment Buttons

2 x Brightness adjustment buttons for increasing and decreasing the display brightness.

Volume Adjustment Buttons

2 x Volume adjustment buttons for increasing and decreasing the volume. (future use)

Mute Button

1 x Mute button to mute and unmute audio. (future use)


Characteristics

Input Voltage

12V ~ 24V DC

Power Consumption

15W (Max)

Dimensions

388.3mm x 238.3mm x 36mm (WxDxH)

Weight

About 2.3Kg

Installation

Embedded front installation and VESA 75×75 standard mounting.

Operating Temperature

-20°C ~ 50°C

Ambient Humidity

5% ~ 95% (non-condensing)


Packing List

  • 1 x SimpliLink LocalHMI Monitor 15.6”

  • 1 x Hardware Kit (6 x M4*10 screws and 6 x M4*16 screws


Dimensions (mm)

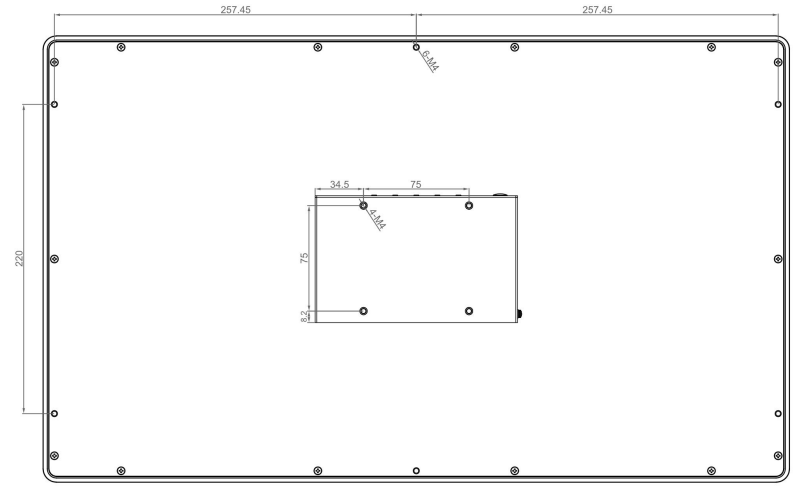

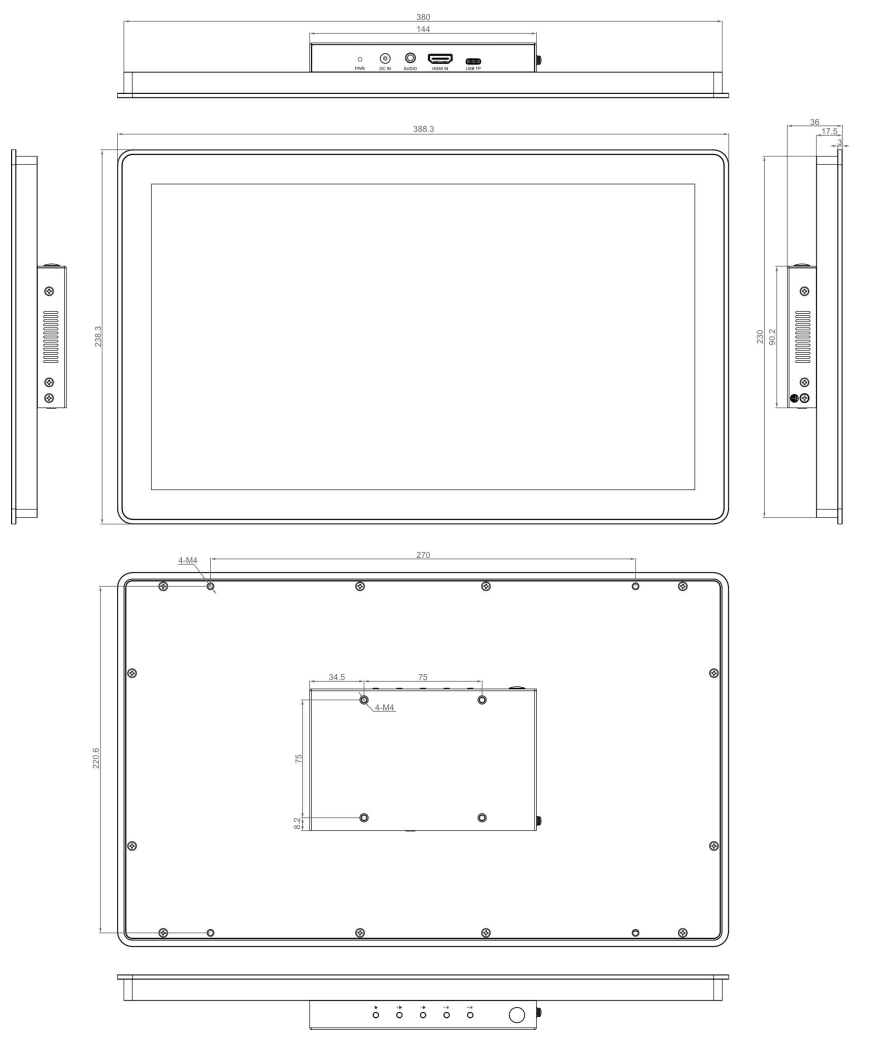

388.3 x 238.3 x 36



Installing the SimpliLink Monitor

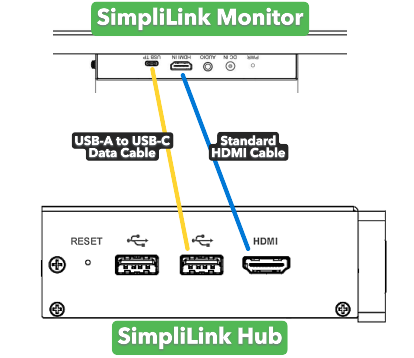

The SimpliLink Monitor connects to the SimpliLink Hub with an HDMI cable for video display and a USB cable for touchscreen control.


  1. Connect one end of a standard HDMI cable to the HDMI port on the back panel of the Monitor.

  2. Connect to the other end of the HDMI cable to the HDMI port on the SimpliLink Hub.

  3. Connect the USB cable to the USB-C port on the Monitor.

  4. Connect the other end of the USB cable to either USB-A port on the SimpliLink Hub.



Connect power to the Monitor using a 5.5mm x 2.5mm male barrel-type power connector with a 12-24 vdc power supply capable of providing at least 18 watts of power.



Mounting


The SimpliLink LocalHMI Hub can be panel mounted using the panel mount M4 recessed threads or wall mounted with an optional VESA 75 x 75 mm compatible mount.
