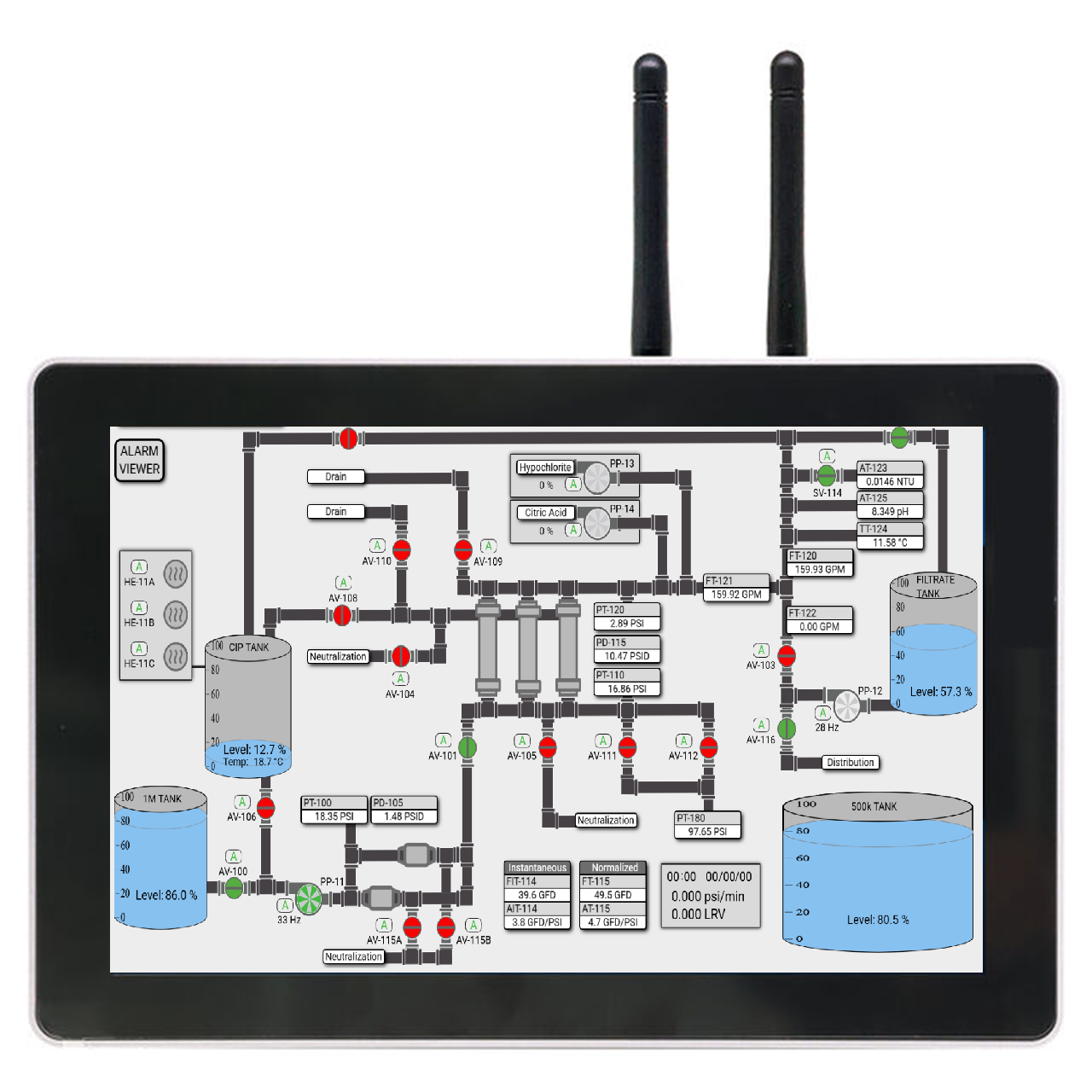

SimpliLink LocalHMI Hub 10.1”



Datasheet & User Guide

Rev. 07/30/2026


The SimpliLink LocalHMI Hub 10.1” is an industrial edge device that provides communications between PLCs, field devices, and the SimpliScada platform. Supporting up to 900 PLC connections and 15,000 tags, it collects and transfers real-time data while providing secure remote connectivity and reliable system communications without requiring third-party software.


Designed for industrial installations, the SimpliLink LocalHMI Hub 15.6” uses standard VESA 75 x 75 mm or flush panel mounting and is rated for operation in demanding environmental conditions. Its rugged hardware ensures stable, secure communication with your SCADA network for continuous monitoring and control.


Key Features

  • 10.1” TFT Touchscreen – 1280x800 resolution, multi-point capacitive.

  • Embedded Installation – VESA standard 75mm x 75mm, Custom 270mm x 220.6mm flush mount.

  • Direct-to-PLC Communication – No middleware or extra software required.

  • Multiple Connection Options – 4G/LTE, Ethernet, and VPN for maximum flexibility.

  • Ethernet Port – Reliable, high-speed data transfer.

  • Super Capacitor – Protects against reversed polarity, voltage spikes and brownouts with a 20-second backup.

  • Wide Voltage Supply (9~36VDC) – Compatible with various industrial power systems. Max 24W power consumption.

  • Certified for Safety & Compliance – RoHS3, FCC, FCC 47 CFR Part 15 Subpart B, CE, IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3, EN 55032/EN 55035, EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52, EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2

  • Wide Operating Temperature – -25ºC to 50ºC

  • Live cellular and device monitoring


Specifications

System

Memory

2, 4, 8 GB LPDDR4-4267 SDRAM

Storage

16, 32 GB eMMC storage

OS

Custom Linux


LCD Touchscreen

Type

Capacitive Touch Screen

Multi-Touch

Yes

Communication Method

USB

Contrast Ratio

1000:1

Viewing Angle

80°

Response Time

30 ms


Side I/O

Power

1 x DC IN, 2-Pin phoenix terminals with screw holes.

It supports 9V~36V input, the signal is defined as VIN+/GND.

RS485/232

Future Use.

1000M Ethernet

1 x adaptive 10/100/1000M ethernet port, RJ45 connector. Used to connect to the local network/PLC.

100M Ethernet

Future use.

SIM Card Slot

1 x Nano SIM card slot, used to install Nano SIM card for getting 4G signal.

SD Card Slot

Future use.

Micro USB

1 x Micro USB port, used to flash to eMMC for clean image install.

HDMI

1 x HDMI port for Local HMI connectivity.

USB 2.0

2 x USB 2.0 ports, Type-A connector, supporting up to 480Mbps. For Local HMI connectivity.

Antennas

1 x SMA female port for 4G antenna connection.

1 x RP-SMA female port for Wi-Fi antenna (future use).


Buttons and Indicators

RESET

1 x RESET button, which can reset the device.

PWR

1 x red power indicator, used to check the status of device power-on.

ACT

1 x green system indicator, used to check the working status of the device.

4G

1 x green 4G indicator, used to check the status of 4G signal (future use).

USER

1 x green user indicator, configurable (future use).

COM1-COM4

4 x green UART indicators, used to check the communication status of UART port (future use).


Characteristics

Input Voltage

9V ~ 36V DC

Power Consumption

24W (Max)

Backup

Supercapacitor, maintains power in event of brown-out or brief power loss.

Dimensions

258mm x 172mm x 42mm (WxDxH, antenna not included)

Weight

About 1.2Kg

Installation

Embedded front installation and VESA 75×75 standard mounting.

Operating Temperature

-20°C ~ 50°C

Ambient Humidity

5% ~ 95% (non-condensing)


Packing List

  • 1 x SimpliLink LocalHMI Hub 10.1”

  • 1 x 4G/LTE Antenna

  • 1 x 2.4GHz/5GHz Wi-Fi Antenna

  • 1 x 2-pin Phoenix Terminal with Lock Screws

  • 2 x 6-pin Phoenix Terminals

  • 1 x SIM Card, Pre-installed (if on cellular plan)

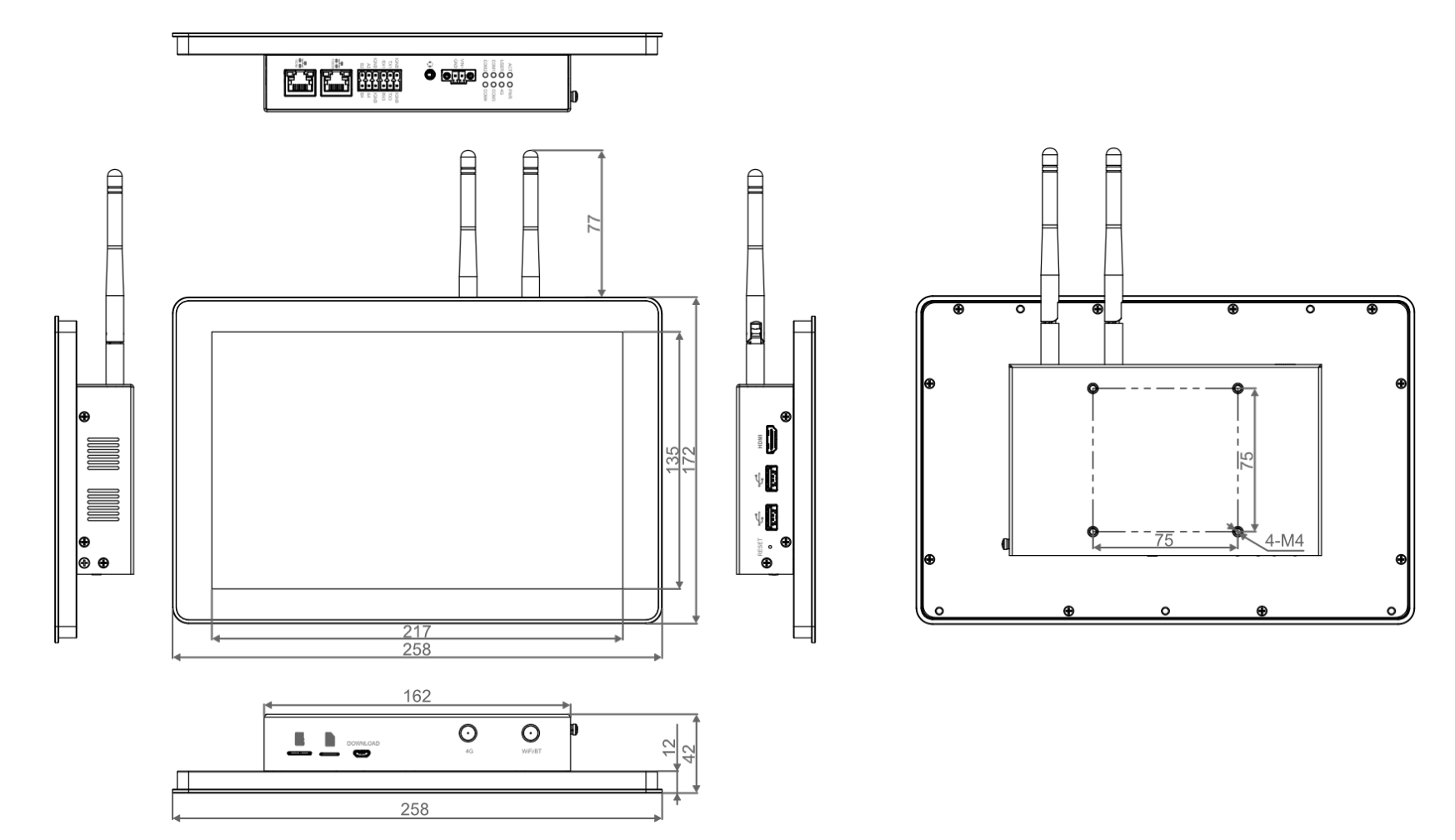

Dimensions (mm)

258 x 172 x 42



Installing the SimpliLink Hub

The SimpliLink LocalHMI Hub ships with the latest firmware already installed. If you purchased the cellular version, the SIM card will also be pre-installed and activated.

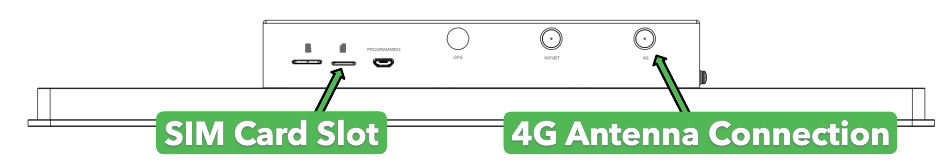

If you need to access the SIM card, use a small flat-head screwdriver to depress the card to release it.



For cellular installations, attach the included 4G antenna before powering on the device. If additional signal strength is required, a compatible remote antenna can be used instead.

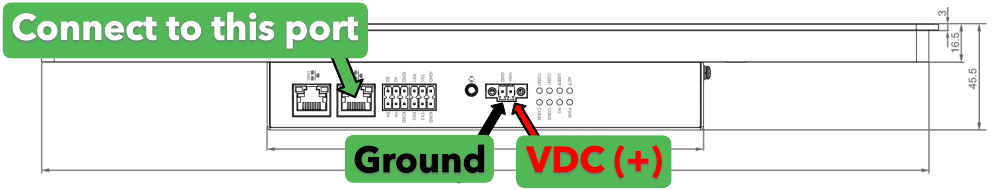

Device connectivity is accomplished via the 1000M ethernet port. This is the second port from the left.


To power the SimpliLink Hub, connect a 9 - 36 VDC power supply capable of providing at least 24 watts to the Phoenix power connector.

  • VIN — Positive (+) DC input

  • GND — DC ground (-)


Mounting

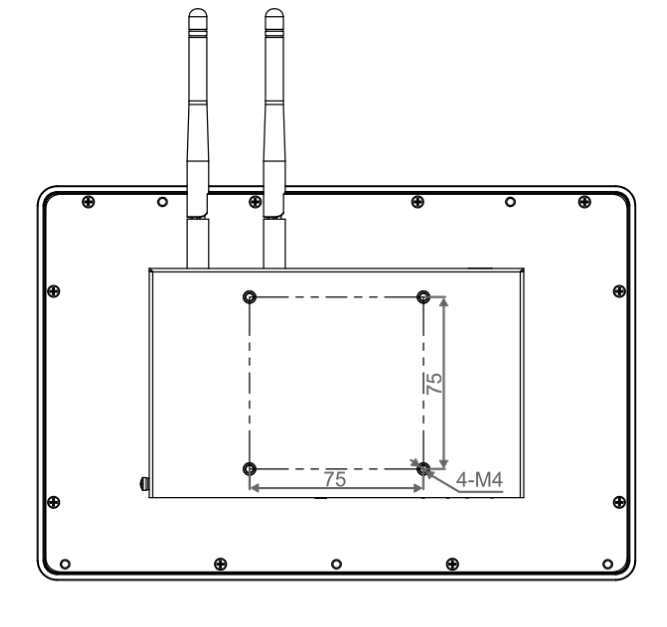

The SimpliLink LocalHMI Hub can be panel mounted using the 233 x 155 mm M4 recessed threads or wall mounted with an optional VESA 75 x 75 mm compatible mount.
