SimpliLink Hub

Datasheet & User Guide

Rev. 07/01/2026

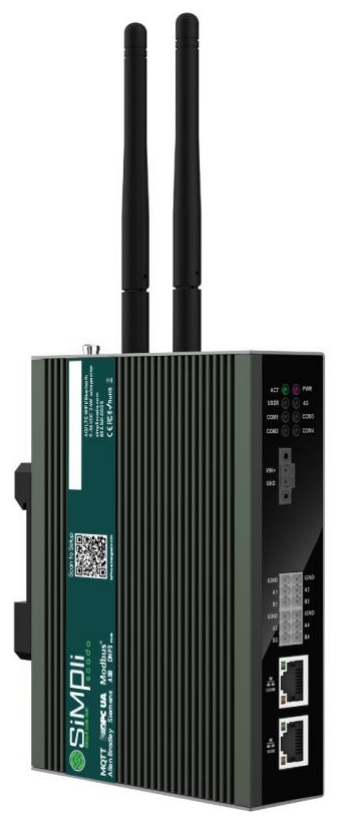

The SimpliLink Hub is an industrial edge device that provides communications between PLCs, field devices, and the SimpliScada platform. Supporting up to 900 PLC connections and 15,000 tags, it collects and transfers real-time data while providing secure remote connectivity and reliable system communications without requiring third-party software.

Designed for industrial installations, the SimpliLink Hub uses standard DIN rail mounting and is rated for operation in demanding environmental conditions. Its rugged hardware ensures stable, secure communication with your SCADA network for continuous monitoring and control.

Key Features

• Direct-to-PLC Communication – No middleware or extra software required.

• Multiple Connection Options – 4G/LTE, Ethernet, and VPN for maximum flexibility.

• DIN Rail Mounting – Easy installation in industrial control panels.

• Ethernet Port – Reliable, high-speed data transfer.

• Super Capacitor – Protects against reversed polarity, voltage spikes and brownouts with a 20-second backup.

• Wide Voltage Supply (9~36VDC) – Compatible with various industrial power systems. Max 25W power consumption.

• Certified for Safety & Compliance – RoHS3, FCC, FCC 47 CFR Part 15 Subpart B, CE, IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3, EN 55032/EN 55035, EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52, EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2

• Wide Operating Temperature – 25ºC to 60ºC

• Live cellular and device monitoring

Specifications

Packing List

• 1 x SimpliLink Hub

• 1 x 4G/LTE Antenna

• 1 x 2.4GHz/5GHz Wi-Fi Antenna

• 1 x 2-pin Phoenix Terminal with Lock Screws

• 2 x 6-pin Phoenix Terminals

• 1 x SIM Card, Pre-installed (if on cellular plan)

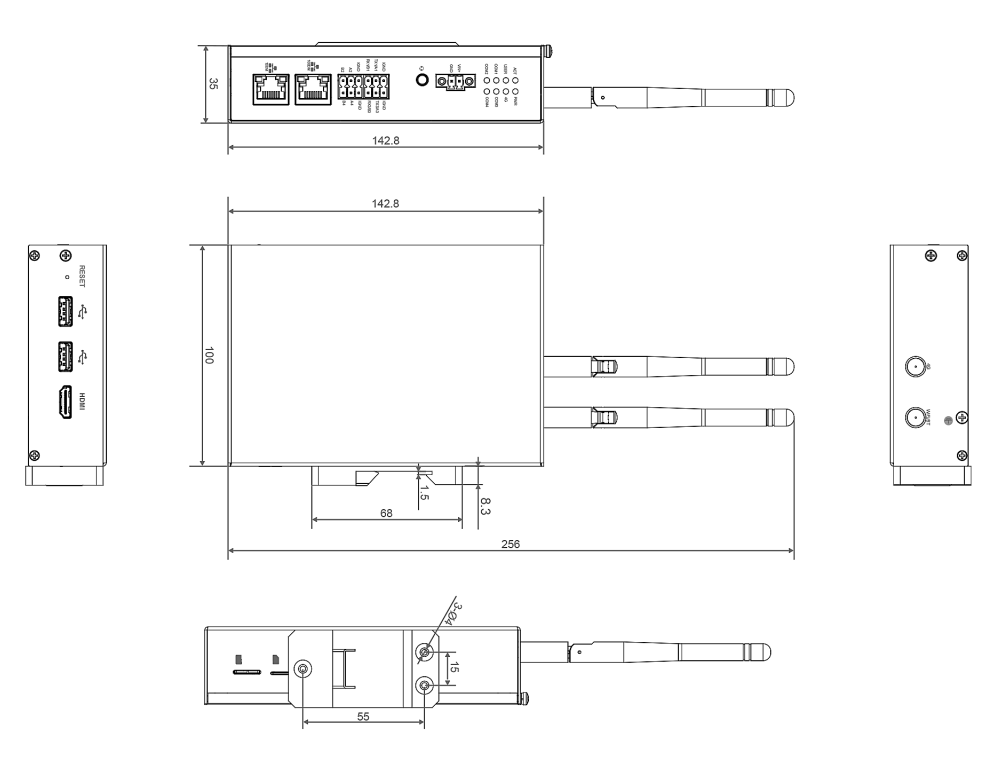

Dimensions (mm)

Installing the SimpliLink Hub

The SimpliLink Hub ships with the latest firmware already installed. If you purchased the cellular version, the SIM card will also be pre-installed and activated.

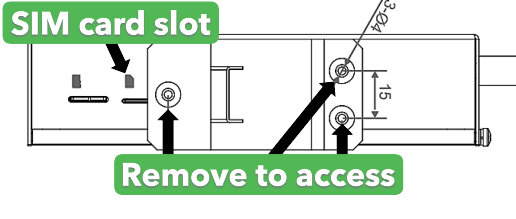

If you need to access the SIM card, remove the DIN-rail mounting bracket by removing the three Phillips-head screws securing it to the device.

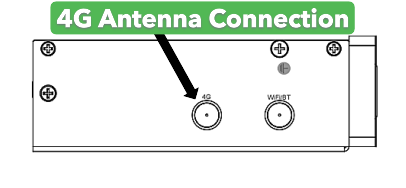

For cellular installations, attach the included 4G antenna before powering on the device. If additional signal strength is required, a compatible remote antenna can be used instead.

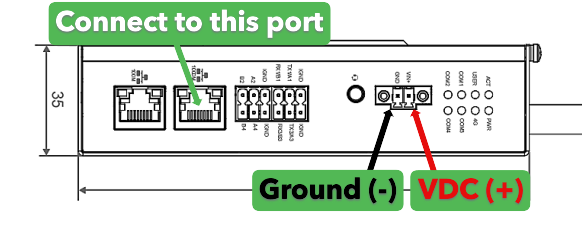

Device connectivity is accomplished via the 1000M ethernet port. This is the second port from the left.

To power the SimpliLink Hub, connect a 9–36 VDC power supply capable of providing at least 25 watts to the Phoenix power connector.

• VIN — Positive (+) DC input

• GND — DC ground (-)

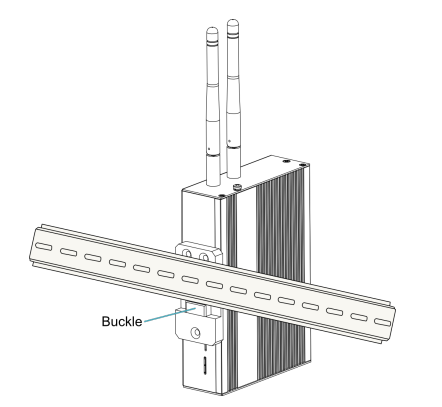

DIN-Rail Mounting

The SimpliLink Hub includes a pre-installed DIN-rail mounting bracket for quick installation.

1. Position the back of the device against the DIN rail with the mounting bracket facing the rail.

2. Hook the lower tab of the mounting bracket over the bottom edge of the DIN rail.

3. Press the top of the device toward the rail until the upper clip snaps securely into place.

4. Gently pull on the device to verify that it is fully seated and locked onto the DIN rail.
