Getting to know your SimpliLink Hub

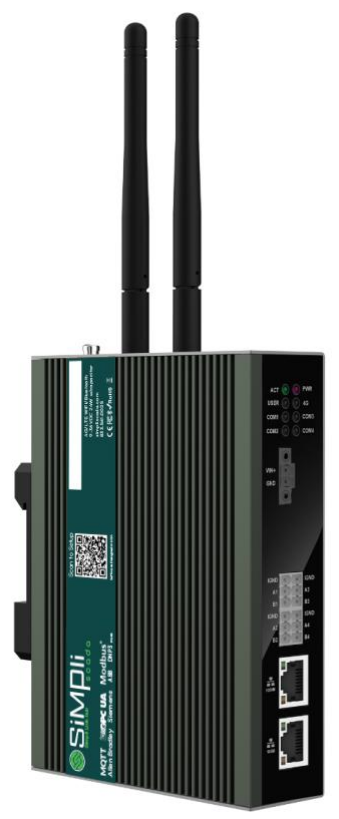

About your SimpliLink Hub:
- The SimpliLink Hub is an industrial-grade minicomputer designed for small/medium facilities. It can
handle up to 900 PLCs and 15,000 tags. It is designed to seamlessly connect
your entire operation to the SimpliScada system. Acting as the central bridge
between PLCs, tags, and industrial devices, the SimpliLink Hub ensures real-time data
communication, secure remote access, and uninterrupted performance — without the
need for third-party software.
- The SimpliLink Hub is built for industrial applications. It is easily installed with DIN rail mounting and operates effortlessly in extreme temperatures while maintaining a secure and stable connection to your SCADA network.
Key Features:
Direct-to-PLC Communication – No middleware or extra software required
Multiple Connection Options – 4G/LTE, Ethernet, and VPN for
maximum flexibility
DIN Rail Mounting – Easy installation in industrial control panels
Ethernet Port – Reliable, high-speed data transfer
Ambient Humidity
Super Capacitor – Protects against reversed polarity, voltage spikes and
brownouts with a 20-second backup
Wide Voltage Supply (9~36VDC) – Compatible with various industrial power systems.
Max 25W consumption
Certified for Safety & Compliance – RoHS3, FCC, FCC 47 CFR Part 15 Subpart B, CE,
IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3, EN 55032/EN 55035, EN
301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52, EN 301 328/EN 301 440/EN 301
511/EN 301 908-1/EN 301 908-2
Wide Operating Temperature - -25ºC to 60ºC
Live cellular and device monitoring
RSSI tracking for signal strength
Connecting your SimpliLink Hub:

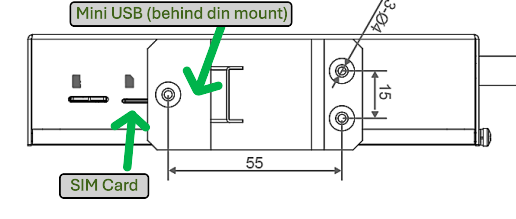

When you receive your SimpliLink Hub, it will already be flashed to the latest firmware, the sim card will be pre-installed, and it will be ready for connection to your existing hardware.

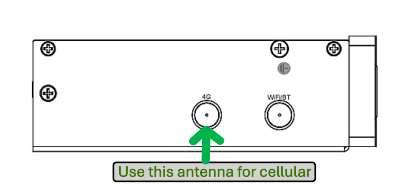

- Cellular: Ensure that either the included stubby antenna or an optional extended range antenna is connected to the antenna port labeled 4g (closest to the center) on the side of the hub.

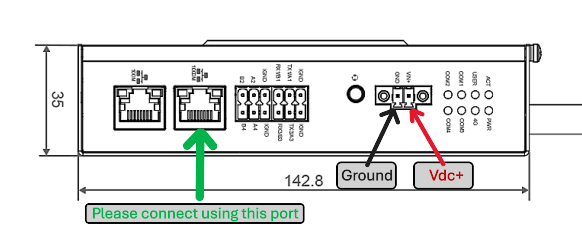

- Data: Using an ethernet cable, connect the SimpliLink Hub (port closest to the center) to your PLC. Connect them either directly or through a switch, if connecting directly it may require a crossover type ethernet cable.
- Power: Using the included phoenix connector, connect the hub to a 9-36vdc power source with at least 25 watts of available power.
Once connected we will be able to validate your install and ensure that you are ready to move forward with your project.
