Adding a Custom SVG Image

Custom images such as company logos and graphic icons can be used to enhance your HMI.

These are imported using the Image Upload tool within the canvas editor.

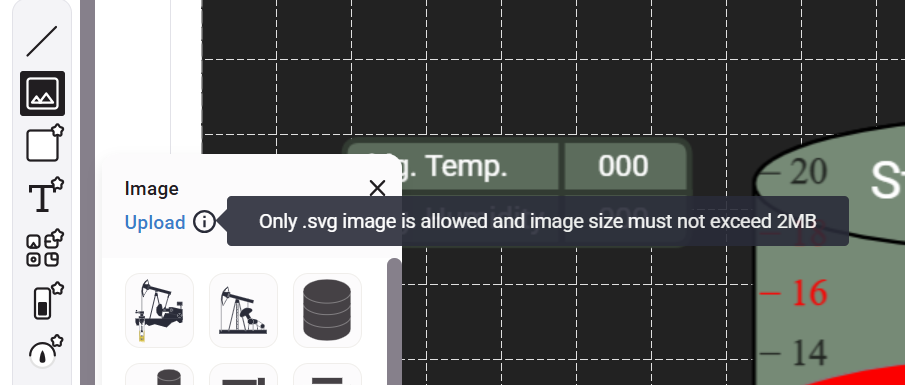

Images must be Vector (.svg) format and are limited to 2mb in size. Once uploaded, they can be added to the canvas and then resized and recolored if desired.

We'll start by importing a company logo .svg file

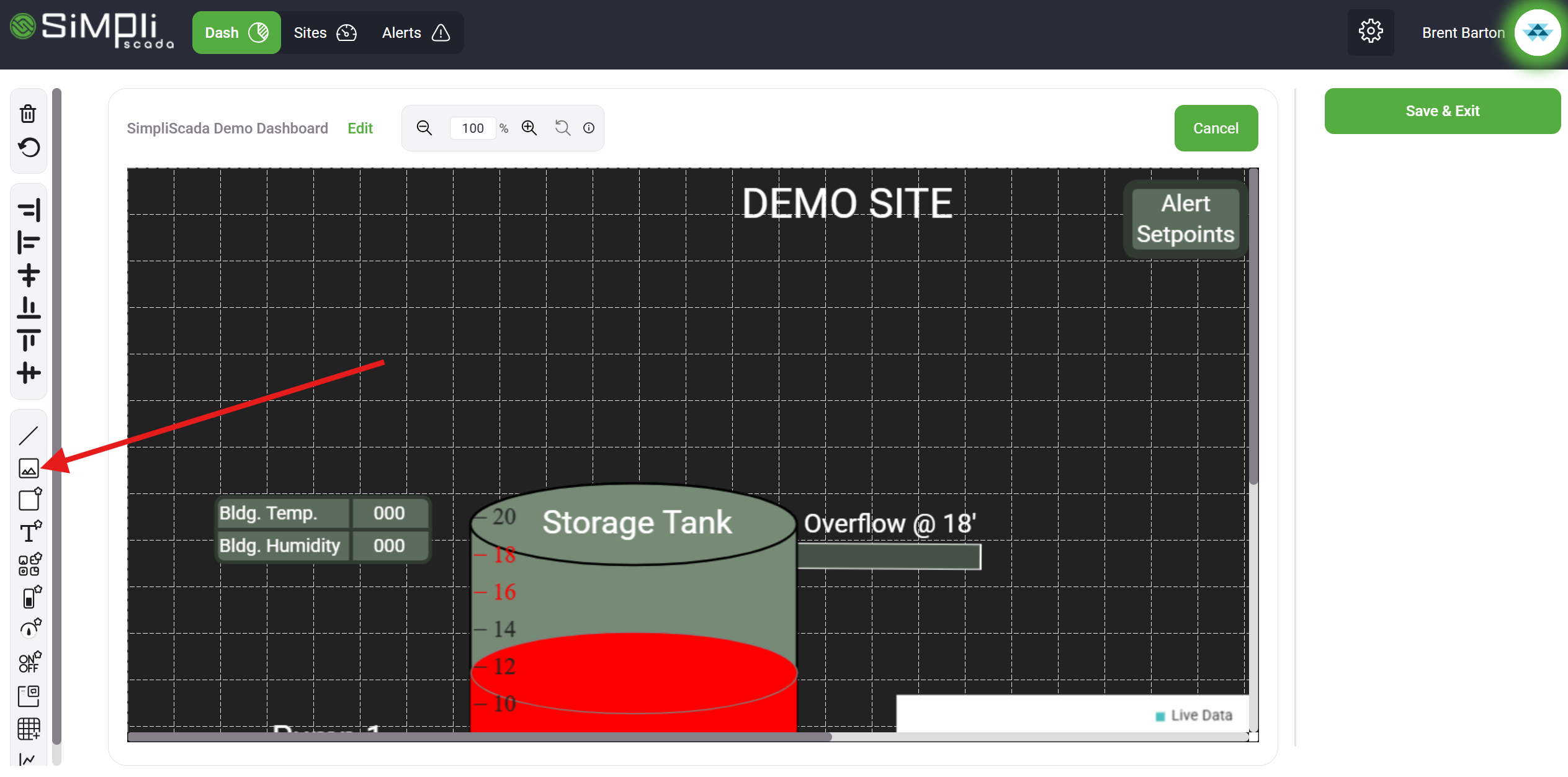

Select the "Image" icon from the left-hand toolbar in the Canvas Editor.

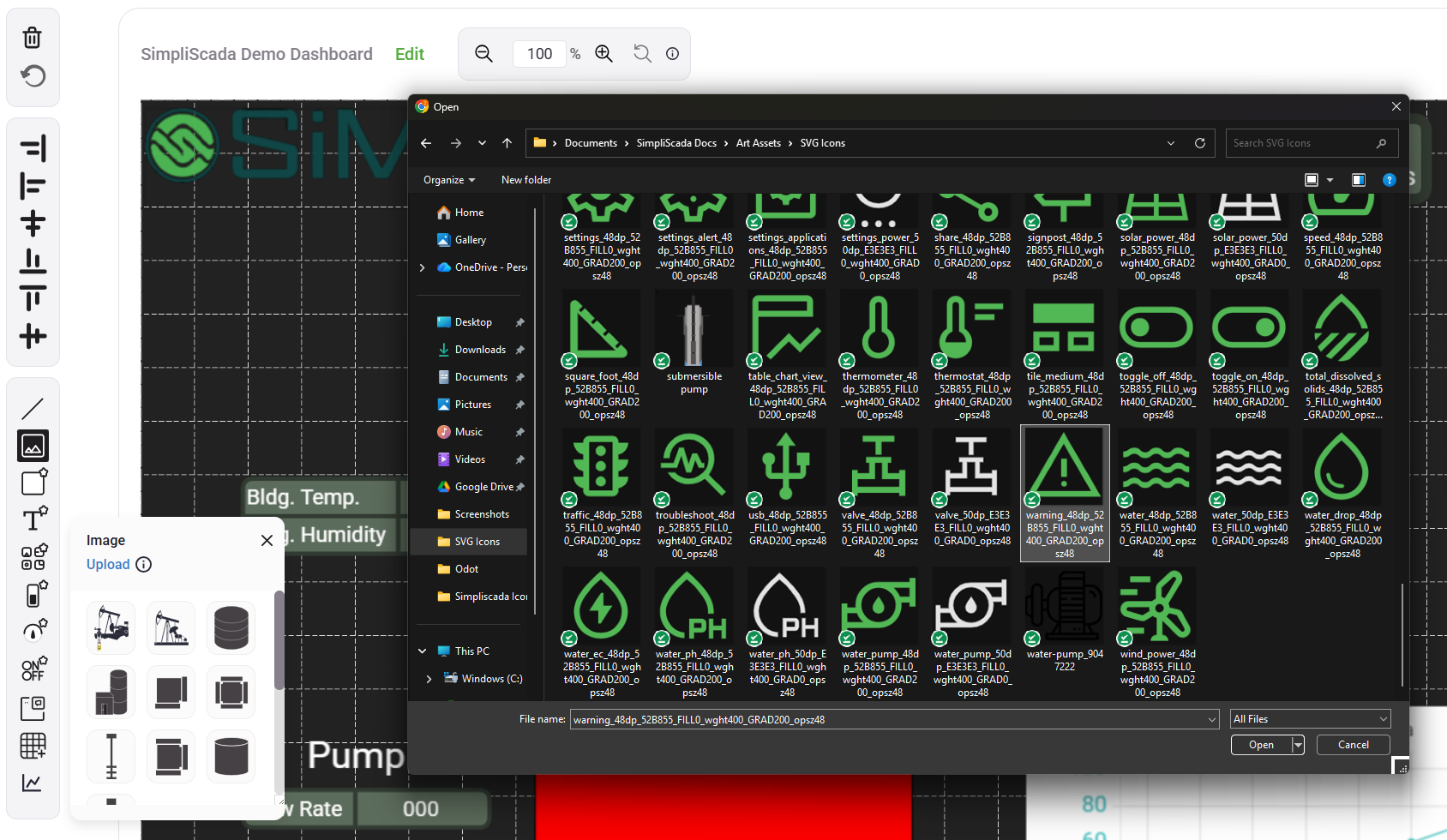

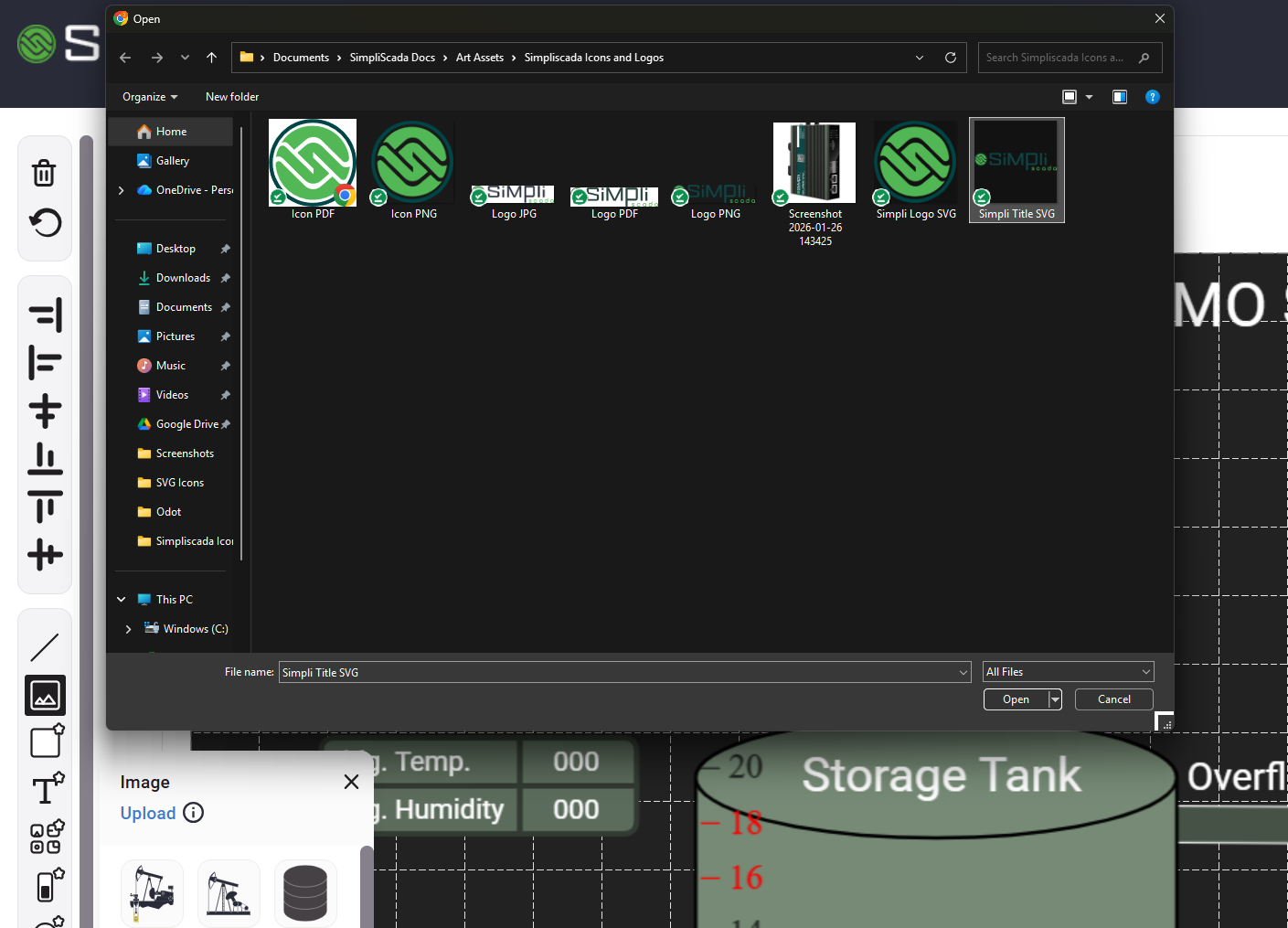

Click "Upload" and select the file you wish to import.

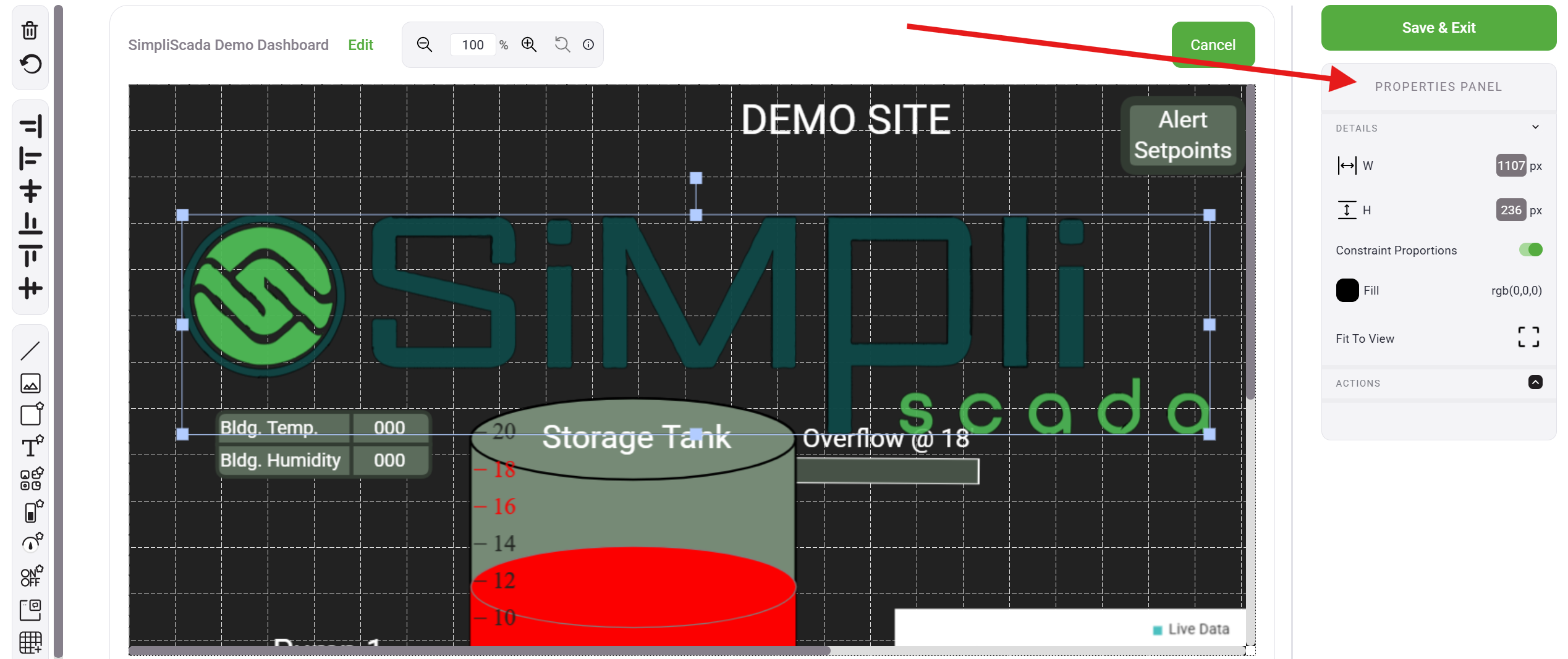

Once imported, select your new image from the image selection tool. It will now appear in the canvas editor. You can resize by using the click-and-drag corner nodes of the image or by selecting the image and entering the pixel size in the Properties Panel on the right-hand side. If you wish to change the aspect ratio of the image, click the green "Constraint Proportions" toggle to deselect it. This will now allow the width and height to be adjusted independently and can cause some image distortion.

For the next example, let's add a simple single color .svg icon.

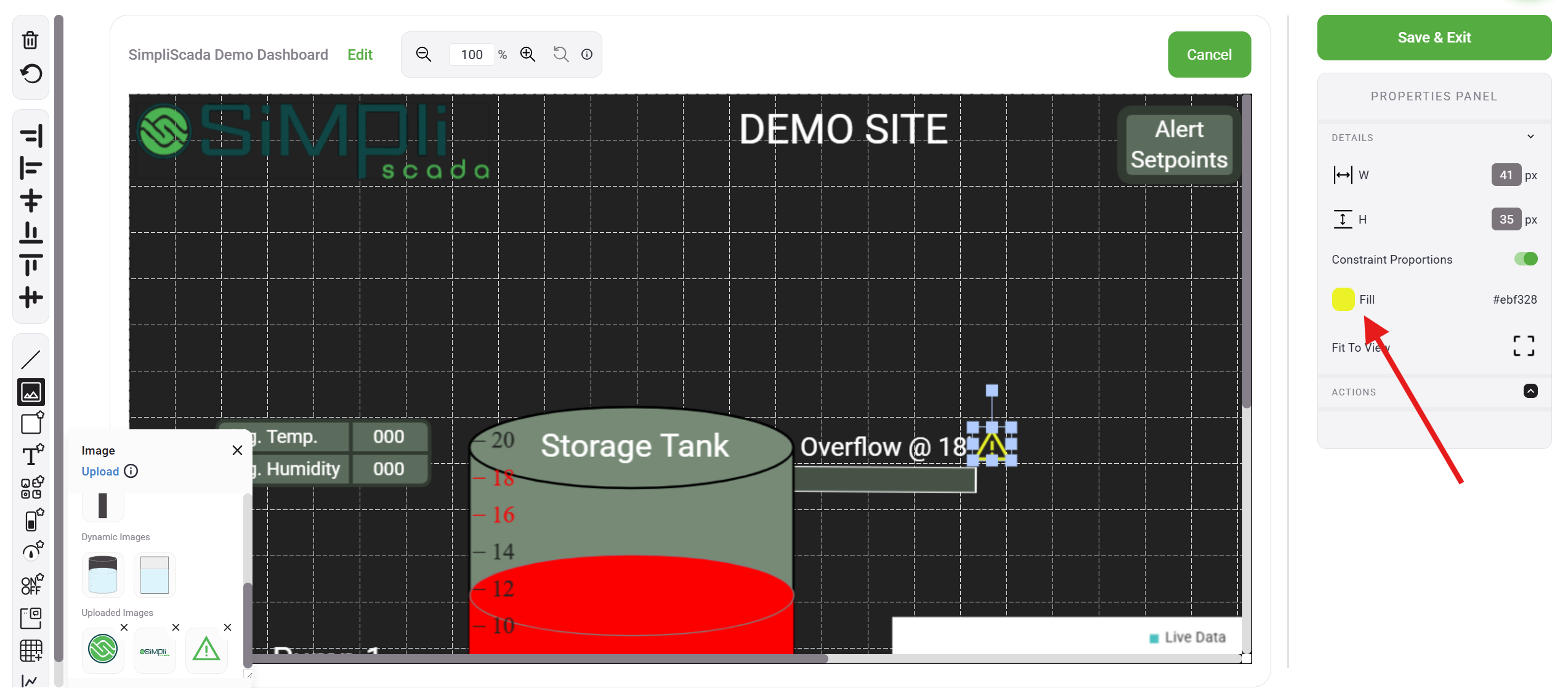

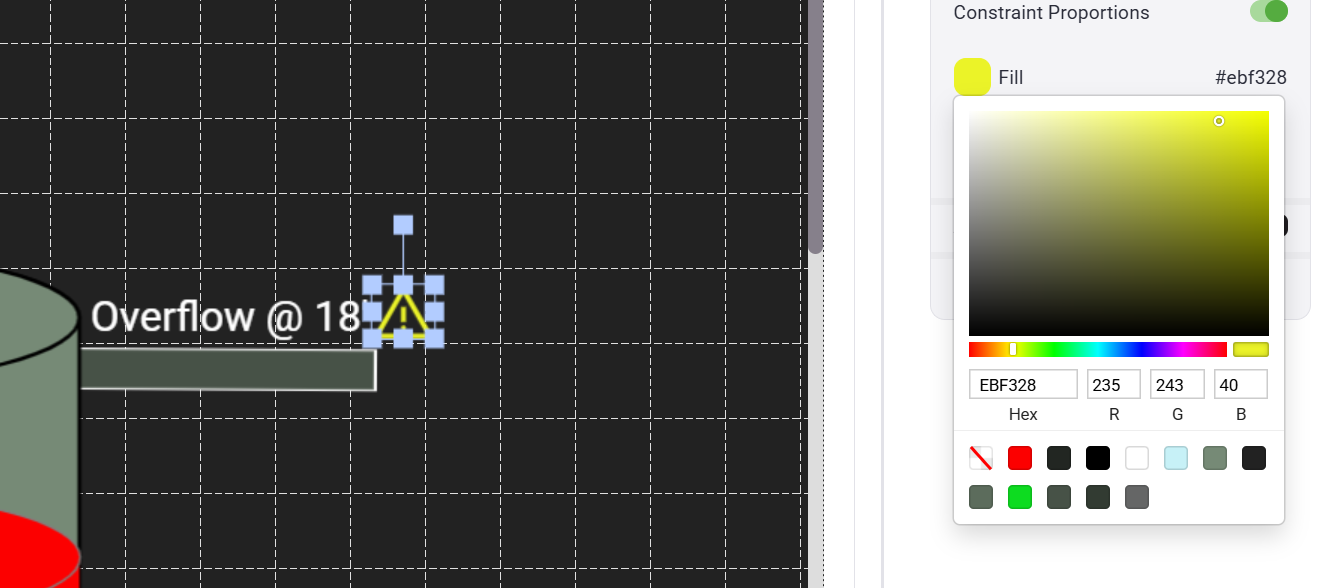

With a single-color .svg image, the fill color can be changed with the color picker from the image's "Properties Panel". While more complex multi-color .svg's can also have the color changed, the results are less predictable.
